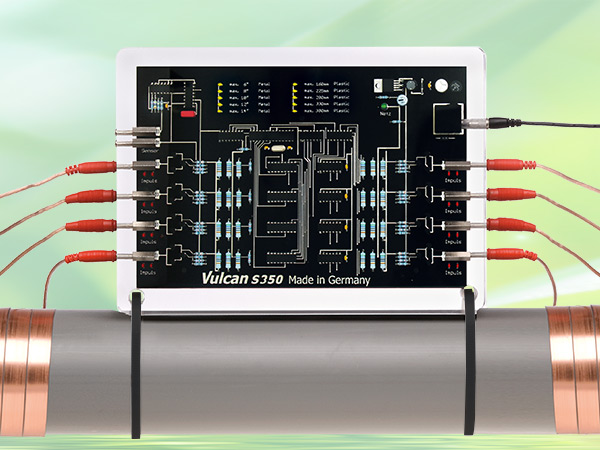

Vulcan S350

Vulcan S350

The Anti-Limescale System Vulcan S350 treats pipe diameters up to 14″ and have been designed to perfectly meet the requirements of industries. This programmable unit allows an individual adjustment according to the material and diameter of the pipes. Appliances and equipment which come in contact with hard water will have a longer life expectancy, when Vulcan is installed. Less time and effort is needed for cleaning, repairs and maintenance, etc.
Installation – without cutting the pipe.

» Vulcan benefits for commercial and industrial applications

» Save money with Vulcan



Vulcan Anti-Limescale System

The electronic eco-friendly solution

Vulcan is an eco-friendly water treatment system that protects your piping system and appliances against limescale built-up and rust. The Vulcan-Impulse-Technology is based on the principle of physical water treatment. Special electronic impulses change the crystallization process of the liquid calcium. This way the hard limescale loses its adhesive power. The technology works exclusively with capacitive electric impulses:



eco-friendly VulcanNO SALT • NO CHEMICALS
NO MAINTENANCE • NO MAGNETISM




» References / Test Reports / Studies

blank


Weight 17 kg
Pipe diameter 6" - 14” (150 - 350 mm)
Max. capacity 500 m³/h (2200 gpm)
Voltage 36 V
Wattage 2.75 Watt
Impulse bands 8 x 20 m (8 x 65' 7″)
Band width 20 mm (0.8")
Dimensions 280/200/50 mm (11.0/7.9/2.0")
Frequency range 3 - 32 kHz
Required space ~ 3400 mm (~11' 2″)
Programs 10

Downloads


  • Vulcan Product Information

  • Vulcan Installation Instructions

  • Vulcan Anti-Limescale System Impulse Detection
